Made in Germany
Development and manufacturing at our site in Braunschweig.
PCAP · Sensor design · Controller & firmware
PCAP touch systems – robust, precise, industry-ready
Projected capacitive touch systems (PCAP) are the industry standard for modern, highly responsive user interfaces. We design and manufacture tailored PCAP solutions – precisely matched to your product design, mechanics and optical, functional and safety requirements.
FormatsFree forms, cut-outs, large formats up to 75″
ProcessCleanroom lamination & autoclaving
SeriesDesigned to be robust for industrial environments
Our PCAP competence at a glance
We combine engineering, cleanroom manufacturing and testing into a reproducible process – ensuring that touch systems perform reliably in the field: optically clean, mechanically robust and designed for industrial environments.

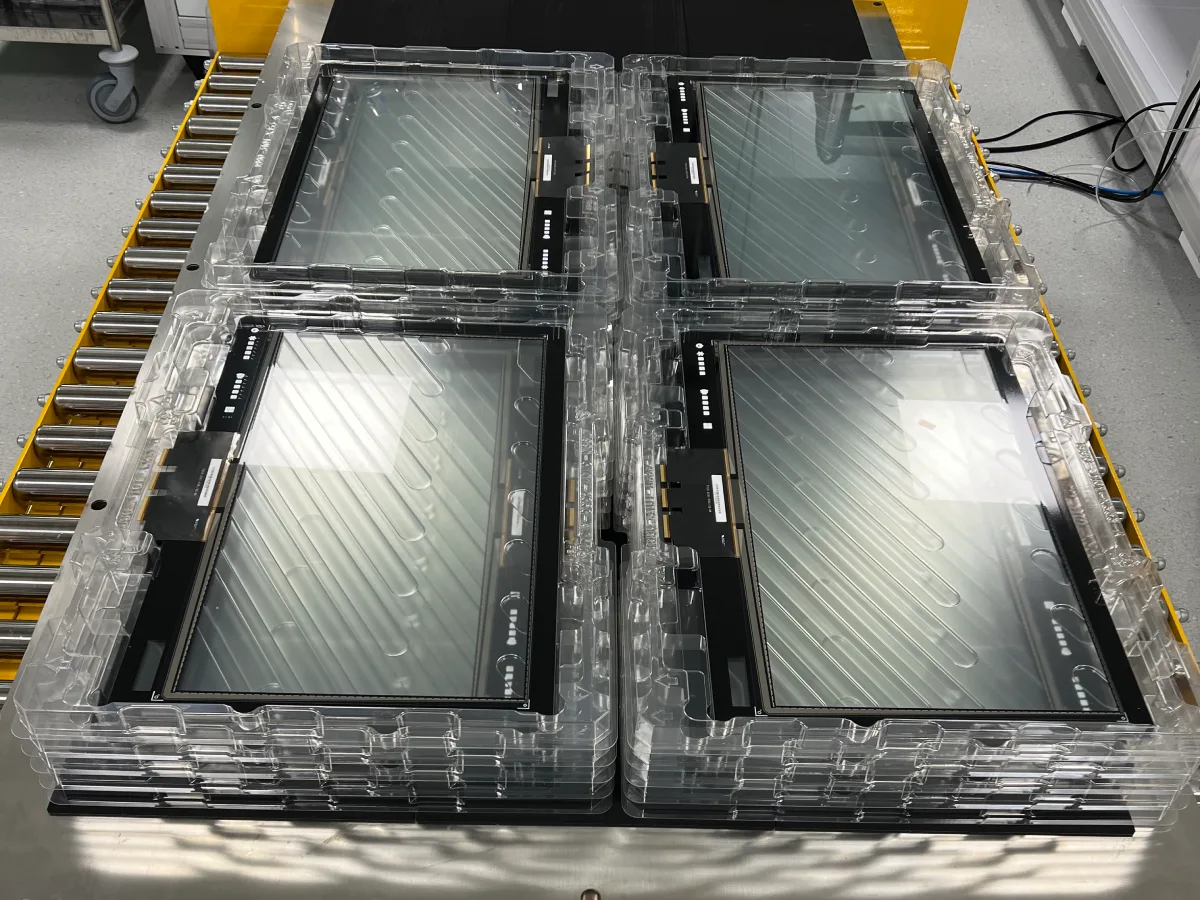

Custom sensor designs
Customer-specific touch sensors in shape, size, border design and active area – including round, perforated and large touch surfaces (up to 75″).
Lamination with cover glass

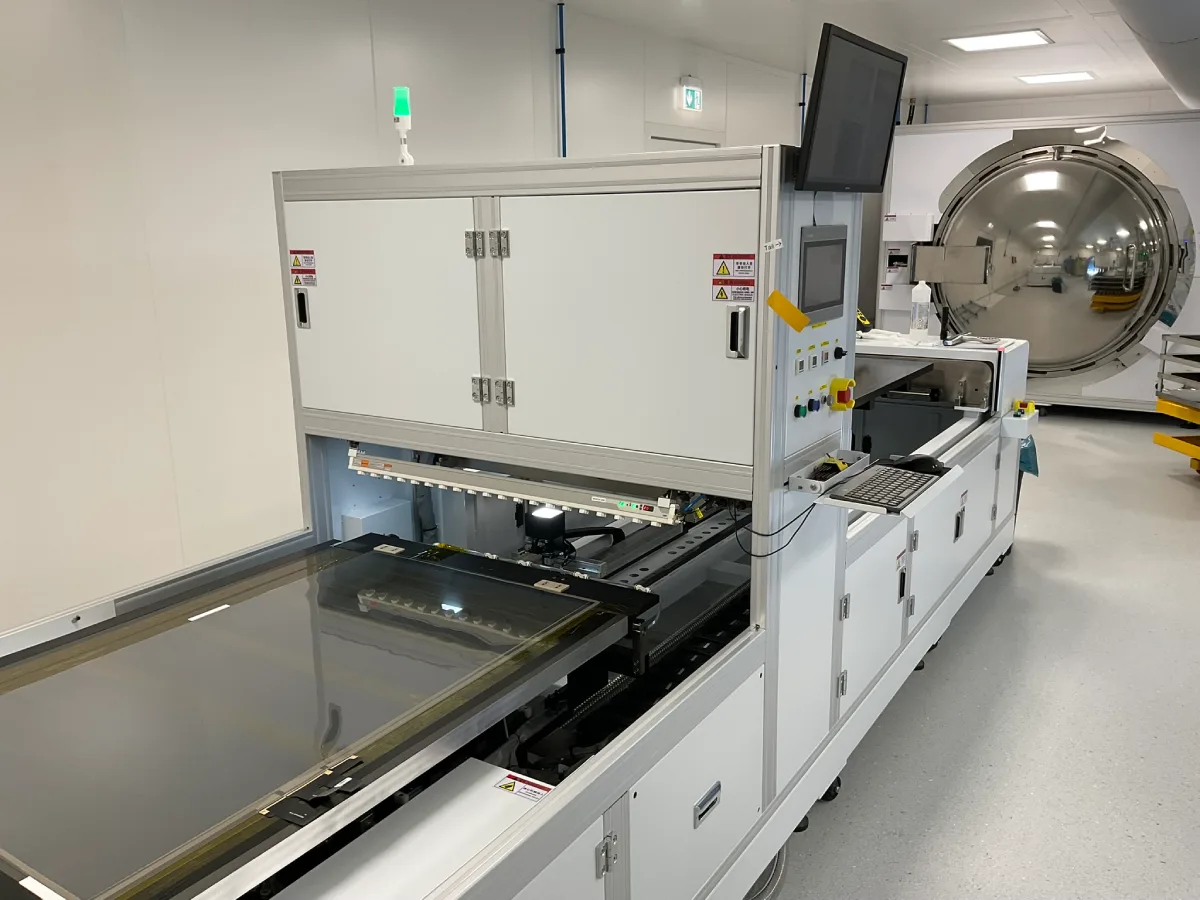

Industrial-grade & high-precision: bonding of PCAP sensor and glass in the cleanroom – followed by autoclaving for maximum optical quality and adhesion.
Integratable functional films
- UV filters (e.g. 99% @ 365 nm)
- IR filters
- Shatter protection films (e.g. according to IK specification)
- Anti-glare / anti-reflection / anti-fingerprint / 3A coatings
Black-panel effect (polariser matching)
By using coordinated polarisation filters, displays can be optically integrated homogeneously into the front surface when switched off – ideal for “hidden-until-lit” designs.
Touch wheel / dial function on glass surface
Integration of capacitive rotary controls (dial wheels) directly into closed glass surfaces – intuitive, wear-free operation without mechanical buttons.
Controller, firmware & environmental suitability
Touch controllers & operating system compatibility
We work with leading controller solutions such as EETI, ILITEK and AXIOM and fine-tune the firmware to meet your requirements:
- Support for up to 10 touch points
- Operation possible with water or gloves
- USB or I²C connection
- Compatible with Windows, Linux, Android
Environmental & application suitability
- Operating temperature range: −30 °C to +85 °C
- 1000 h solar radiation test (UV resistance)
- ESD protection concept
- Suitable for medical, industrial and outdoor environments

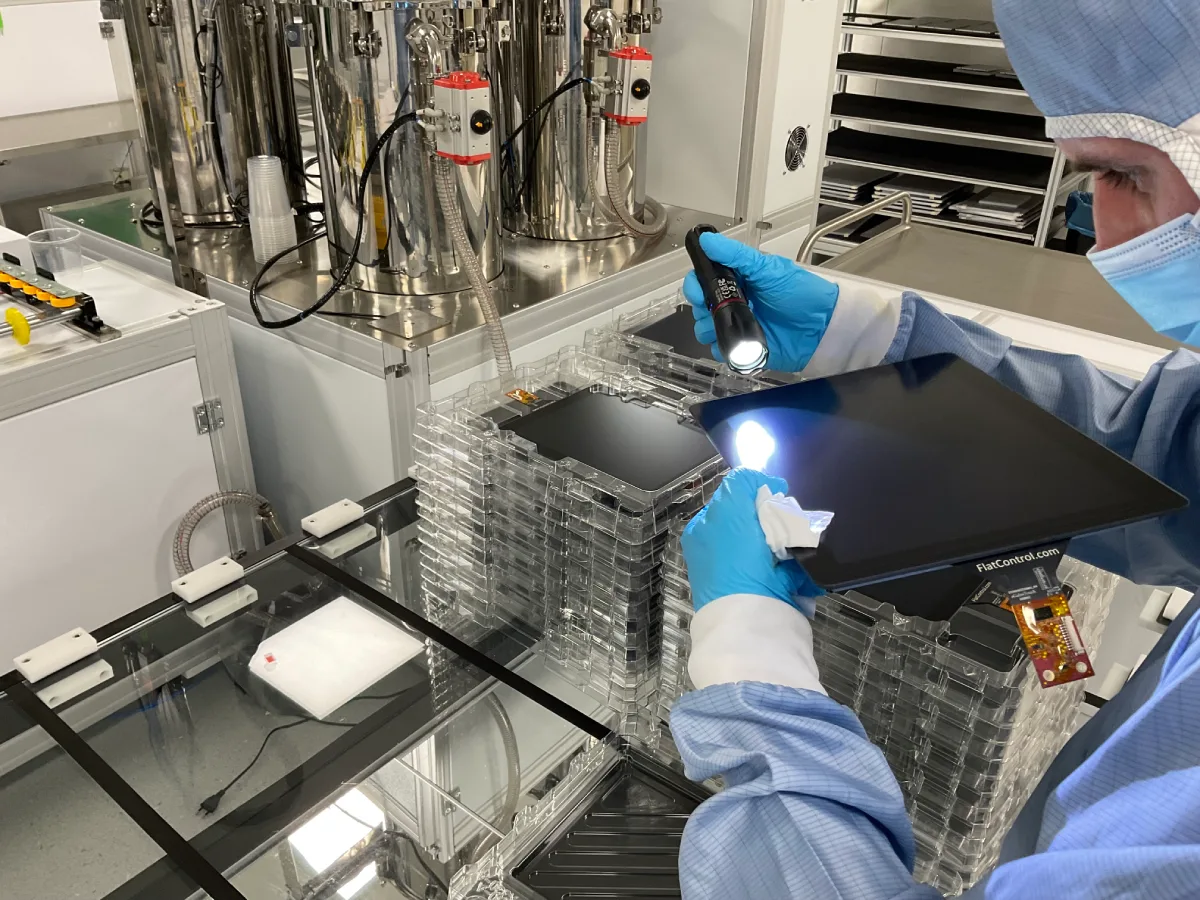

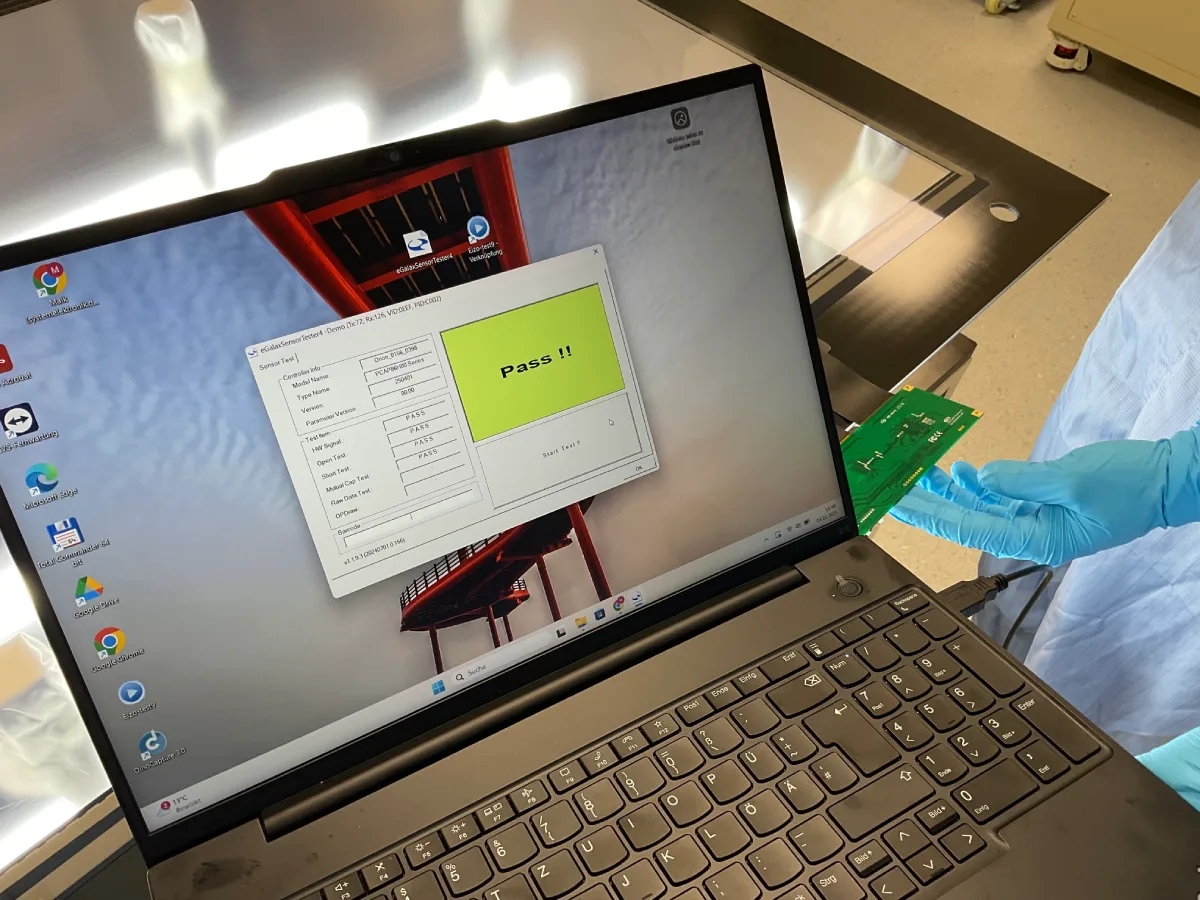

Engineering, lamination & testing – all under one roof.
With our manufacturing in Braunschweig, we ensure maximum flexibility, short response times and
reproducible quality – even for medium lot sizes or demanding designs.
Submit a project request
Are you planning a new PCAP touch unit or would you like to convert existing HMI fronts to PCAP? Tell us the display size, glass stack-up and application environment – we will review stack-up, controller selection and feasibility and get back to you with a technical proposal.
